DNT 6431 ALUMINUM PROFILE PNEUMATIC CYLINDER TUBE, ALUMINUM EXTRUDED TUBE
The DNT air cylinder tube is new type for mickey mouse type.
|

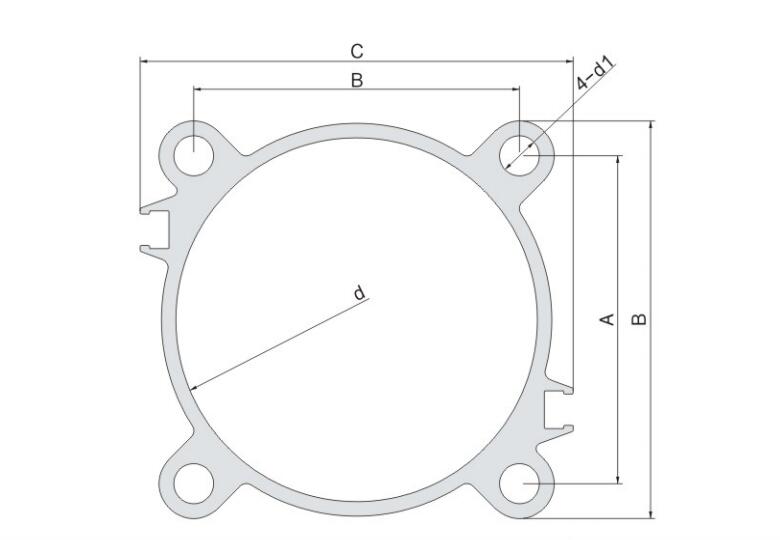

NO |
d |
4-d1 |
A |
B |
C |
|
1 |
φ32 |
5.3 |
42.5 |
32.5 |
44.2 |
|
2 |
φ40 |
5.3 |
48 |
38 |
51.6 |
|
3 |
φ50 |
6.9 |
58.5 |
46.5 |
64.1 |
|
4 |
φ63 |
6.9 |
68.5 |
56.5 |
75.1 |
|
5 |
φ80 |
8.8 |
86 |
72 |
93.6 |
|
6 |
φ100 |
8.8 |
104 |
89 |
111.4 |
|
1 |
φ125 |
10.7 |
134 |
110 |
139 |
Material of Aluminum Alloy Profile Aluminum pneumatic cylinder tube: aluminum alloy 6063 T5
Our standard Length is 2000mm, if need other length, please freely to inform us.
Anodized surface: Inner tube-15±5μm Outer tube-10±5μm
Accords to design FESTO, SMC, Airtac, Chelic etc.
Accords to the standard ISO 6430 ISO6431 VDMA 24562 ISO15552 etc.
Used for standard cylinder, compact cylinder, mini cylinder, Dual Rod cylinder, Slide cylinder, Slide Table cylinder, Gripper etc. Also for some special cylinders.
Chemical Composition:
|
Chemical Composition |
Mg |
Si |
Fe |
Cu |
Mn |
Cr |
Zn |
Ti |
|
0.81 |
0.41 |
0.23 |
<0.08 |
<0.08 |
<0.04 |
<0.02 |
<0.05 |
Specification:
| Tension Intensity (N/mm2) | Yield Strength (N/mm2) | Ductility (%) | Surface Hardness | Internal Diameter Accuracy | Internal Roughness | Straightness | Thickness Error |
| Sb 157 | S 0.2 108 | S8 | HV 300 | H9-H11 | < 0.6 | 1/1000 | ± 1% |
Torlerance Of Aluminium Alloy Tube:
| TORLERANCE OF ALUMINIUM ALLOY TUBE | ||||||
| Bore Size | TORLERANCE | |||||
| mm | H9(mm) | H10(mm) | H11(mm) | |||
| 16 | 0.043 | 0.07 | 0.11 | |||
| 20 | 0.052 | 0.084 | 0.13 | |||
| 25 | 0.052 | 0.084 | 0.13 | |||
| 32 | 0.062 | 0.1 | 0.16 | |||
| 40 | 0.062 | 0.1 | 0.16 | |||
| 50 | 0.062 | 0.1 | 0.16 | |||
| 63 | 0.074 | 0.12 | 0.19 | |||
| 70 | 0.074 | 0.12 | 0.19 | |||
| 80 | 0.074 | 0.12 | 0.19 | |||
| 100 | 0.087 | 0.14 | 0.22 | |||
| 125 | 0.1 | 0.16 | 0.25 | |||
| 160 | 0.1 | 0.16 | 0.25 | |||
| 200 | 0.115 | 0.185 | 0.29 | |||
| 250 | 0.115 | 0.185 | 0.29 | |||
| 320 | 0.14 | 0.23 | 0.36 | |||
